Products > Signal Generation

Products Specifications Applications Drawings Programming

Drawings

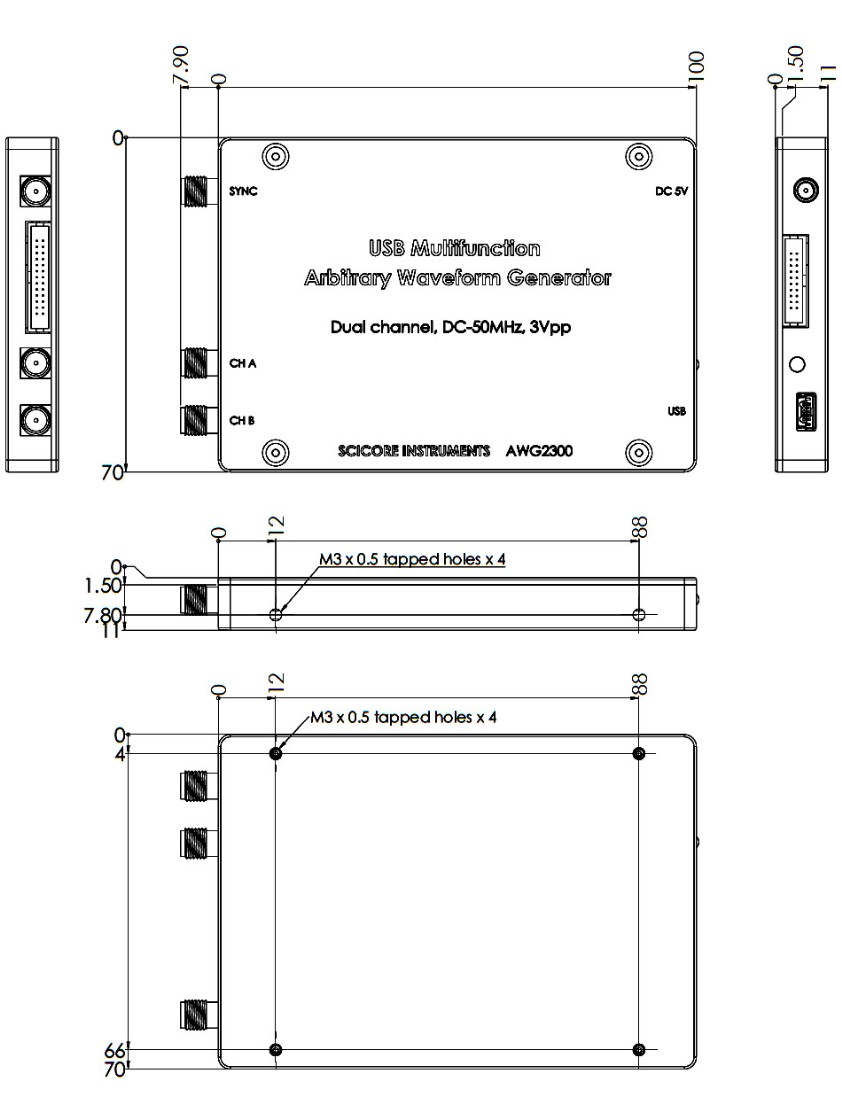

1. AWG2300 Dimensions (unit: mm)

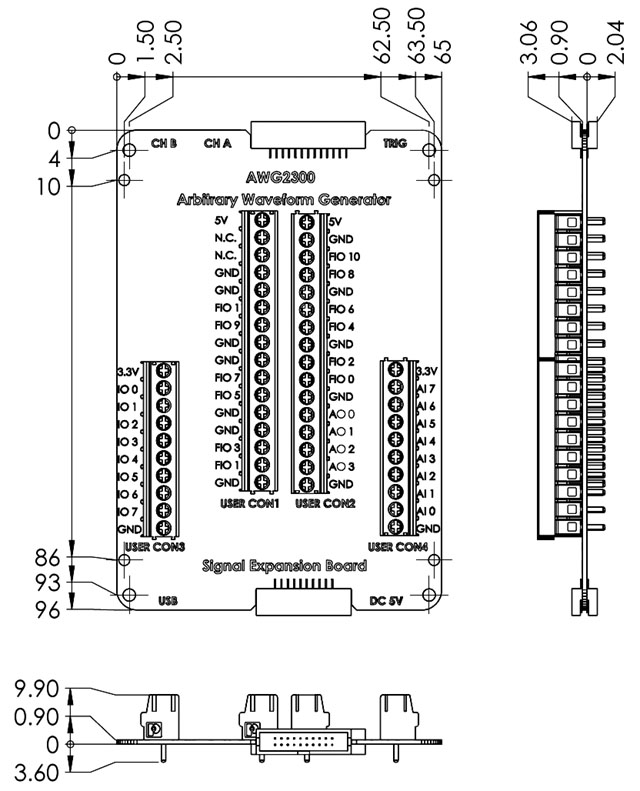

2. Signal Expansion Board Dimensions (unit: mm)
