SciCore Instruments

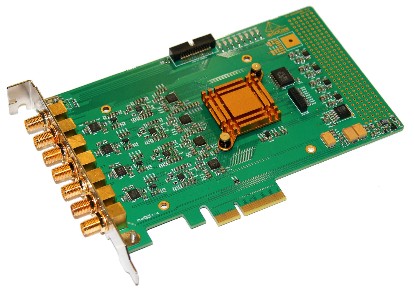

DAQ0754S
PCI-express Data Acquisition Card

• 4 simultaneous analog input channels


• 14 bit A/D resolution at 75 MS/s


• Selective gain x1 and x10 input amplifier


• 4 lane PCI express bus interface to PC


• 600 MB/s sustained data throughput


• Nearly 100% measurement duty cycle


• Simplified software programming interface

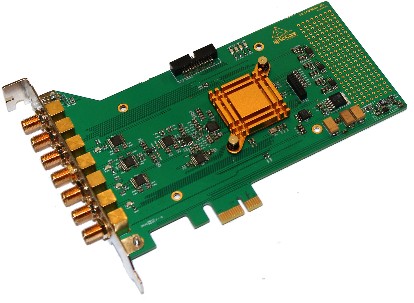

DAQ0504M
PCI-express Data Acquisition Card

• 4 multiplexed analog input channels


• 14 bit A/D resolution at  50MS/s


• < 1 ms channel switching time


• Selective gain x1, x10 and x100 input amplifier


• PCI express bus interface to PC


• 100 MB/s sustained data throughput


• Nearly 100% measurement duty cycle


• Simplified software programming interface

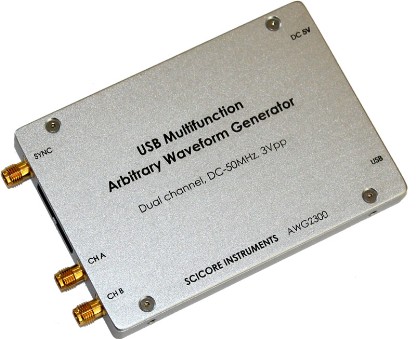

AWG2300
USB Multifunction Arbitrary Waveform Generator

• Simultaneous dual channel waveform generation


• DC - 50 MHz output frequency range


• Waveform sampling rate: 300MS/s


• Waveform vertical resolution: 14-bit


• Analog input channels: 8


• Digital IO channels: 8


• Analog output channels: 4


• PC communication interface: USB COM port (RS232)


• Pocket size: 108 mm (L) x 70 mm (W) x 11 mm (H)
