Applications
Configuration Options
Besides outputting the two waveforms from the SMA connectors, the AWG2300 provides other functional signals include analog input, analog output and digital IO lines accessible to the user on the screw type terminal blocks installed on an optional signal expansion board (AWG2300-
To connect a signal wire to a screw terminal, prepare the wire by stringing ~5mm of insulation, insert the wire into the screw terminal, and securely tighten the screws with a flathead screwdriver.

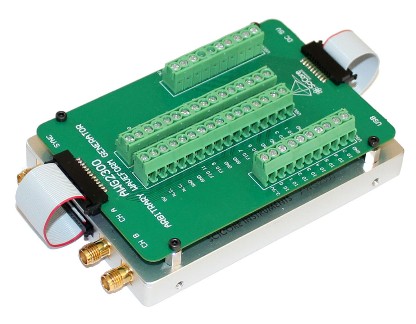

FIGURE (UP) Front view

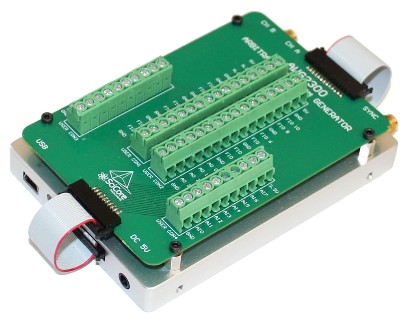

FIGURE (UP) Back view
Power Supply Options
When powered by a USB cable connected to a running PC, AWG2300 provides full functionalities including data transfering between the AWG and the PC by the application software.
When powered by a single DC 5V power supply, AWG2300 automatically updates the output waveforms using user defined frequency, amplitude and other waveform parameters.

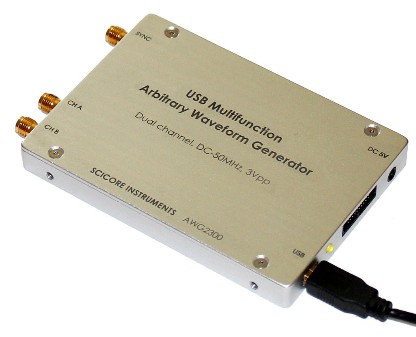

AWG2300 powered by a USB cable connecting to the PC
with all features controlled by the software

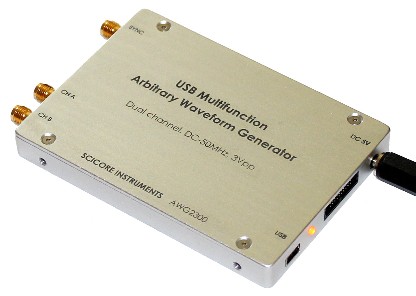

AWG2300 powered by a single DC 5V power supply
running in stand-

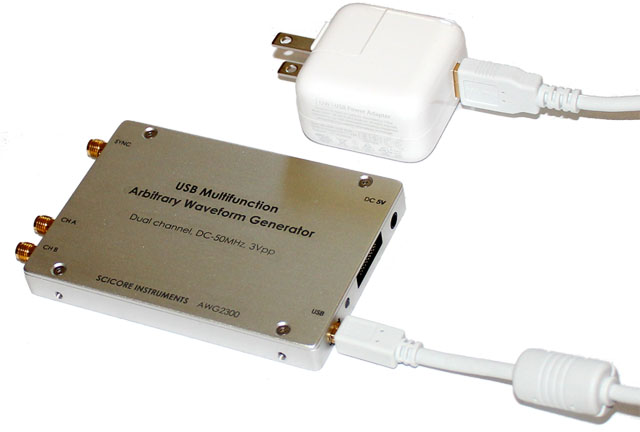

AWG2300 also can be powered by a 5V USB power adapter
running in stand-
